Video Animations

Packer Qualtity Control Identificaion & Measurement of Voids/Inclusions

Packers preclude drilling blowouts, so failure of this component can cause a serious accident. Drill stem packers are tested non-destructively by CT to conform to homogeneity criteria set by the manufacturer. Postprocessing software groups of voxels outside density criteria, automatically rejecting the packer, if it fails the criteria.

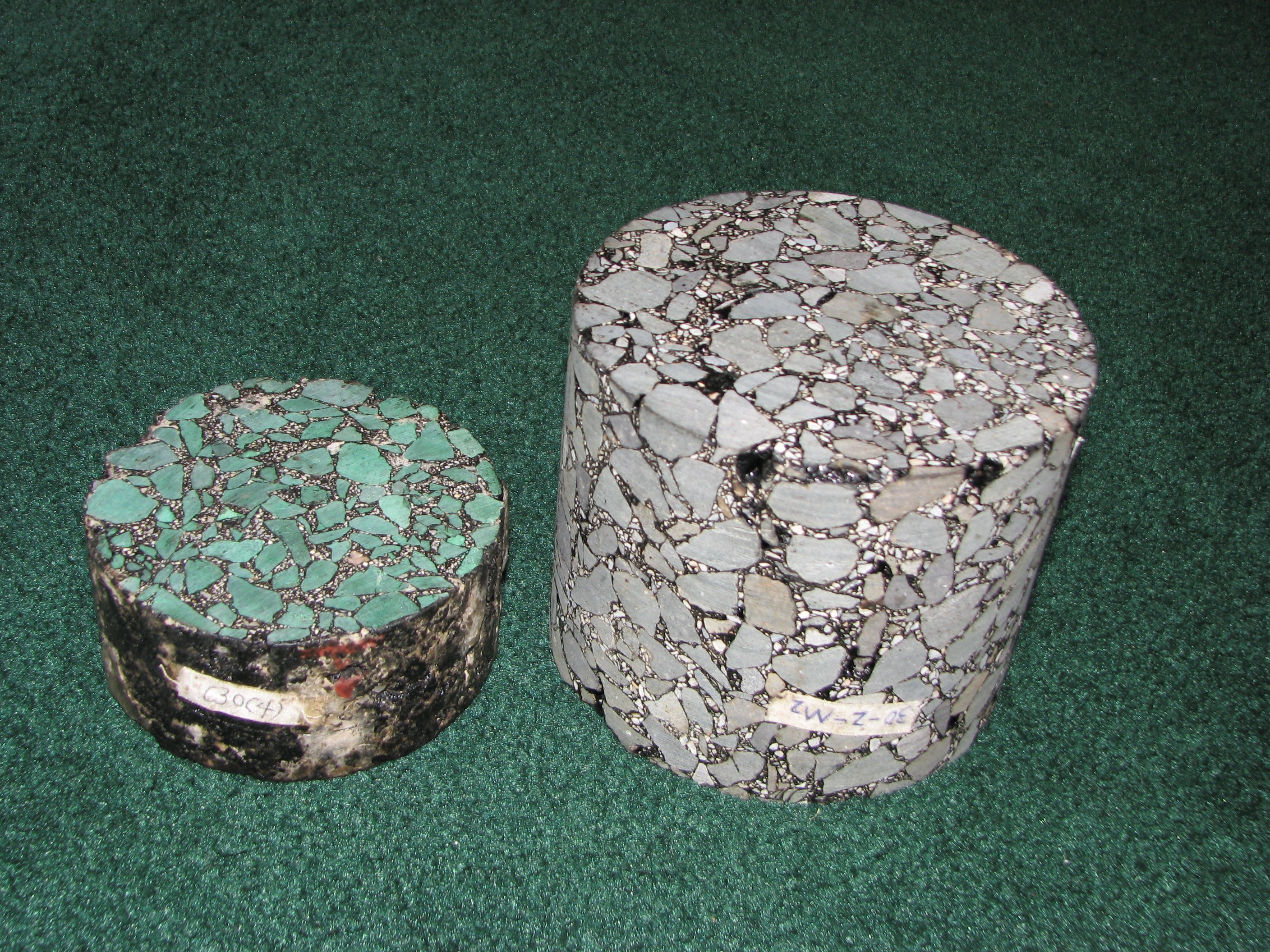

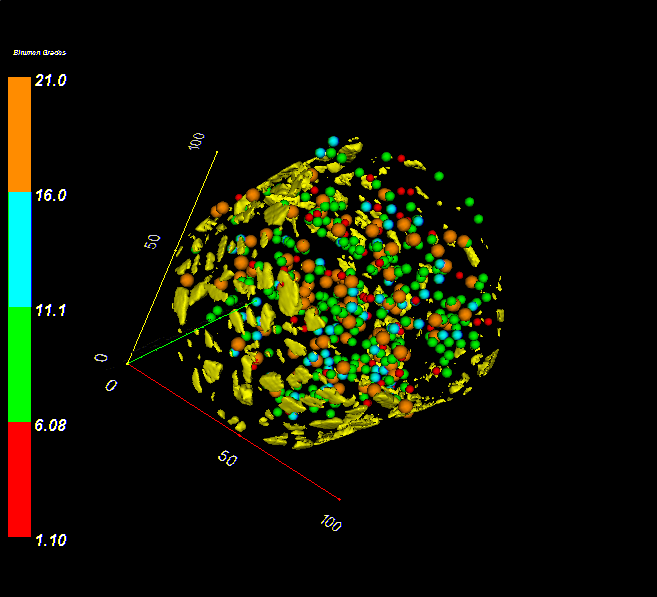

VoxelCalc Reports and Sample Images

Crossplot of Density vs Effective Atomic # - for mineralogy. Plots of 150,000 values in each of the two volumes.

Determination of Minerology - Dual Energy CT

Plug CT Slices at 0 and 90 degrees. Typical plug screening prior to further testing, centrifuge etc.

Plug evaluation and screening.

Fractures from perforation impact, projectile is red.

Isosurface showing gold penetration and fractures. Red shows residual projectile. 200 CT slices at 2mm spacing. Our home page accesses an interactive virutal reality rendering of this.

Scout (radiograph) Core 'Slabs'-Core Screening prior to choosing actual CT slice positions.

Simple radiographs show relative contrast of materials. While indicating some qualitative contrast in density, radiographs do not provide a quantitative measurement of the distribution of contrast components. It is necessary to use CT for making voxel measurement of density-related values.

Isosurface of Barite mud invasion, showing high atomic number materials in contrast to most oil-bearing materials.

Vug and Mud Invasion Renderings
